Read USP Chapter 3
Read USP Sections 3.1-3.5 carefully.
Chapter 3 Highlights
fork:
#include <sys/types.h> #include <unistd.h> pid_t fork(void);return -1 if error
Example 3.5, page 65 (simplefork.c): What is the value of x for each process
Example 3.6, Page 65 (twoprocs.c): Parent and child print different messages
Program 3.1, Page 67 (simplechain.c): a chain of processes, parent always breaks
Program 3.2, Page 68 (simplefan.c): a fan of processes, the child breaks
Problem from Spring 2001 Final Exam:
Trace the following program segment and determine how many processes are
created. Assume that no errors occur.

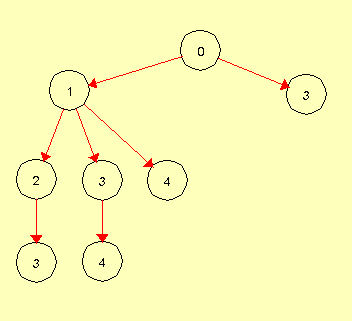

Draw a graph that shows how the processes are related. In this graph each
process will be represented by a small circle containing a number that
represents which fork
created the process. The original process will contain 0 and the process
created by the first fork will contain 1.
There will be arrows from each parent to all of its children.
Each arrow should point in a downward direction.
c2 = 0; c1 = fork(); /* fork number 1 */ if (c1 == 0) c2 = fork(); /* fork number 2 */ fork(); /* fork number 3 */ if (c2 > 0) fork(); /* fork number 4 */
wait:
#include <sys/wait.h> pid_t wait(int *stat_loc); pid_t waitpid(pid_t pid, int *stat_loc, int options);wait:
waitpid:
Allows you to wait for a particular process, or all processes if pid
is -1.
Important option is NOHANG which will return 0 if there is a specified
child to wait for but it has not yet terminated.
Important values of errno:
ECHILD no unwaited for children
EINTR a signal was caught
The status value is 0 if and only if the process terminated normally and
returned 0. In all other cases the status should be examined using the
provided macros defined in sys/wait.h.
Program 3.3 (r_wait.c) shows how to restart a wait call when it is interrupted by a signal.
Exercise 3.20 (fanwaitmsg.c), the parent waits for all of its children
Exercise 3.21 (chainwaitmsg.c) , each process waits for its child.
The following code segments waits for all children that have finished but does not block if there are no children whose status is available:
pid_t childpid; while (childpid = waitpid(-1, NULL, WNOHANG)) if ((childpid == -1) && (errno != EINTR)) break;
Status values
The following macros are available for checking the return status of a child:
#include <sys/wait.h> WIFEXITED(int stat_val) WEXITSTATUS(int stat_val) WIFSIGNALED(int stat_val) WTERMSIG(int stat_val) WIFSTOPPED(int stat_val) WSTOPSIG(int stat_val)They are used in pairs.
The other ones are used when the process exits because of a signal or
is stopped.
Example 3.22 on page 77 (showreturnstatus.c) gives an example of using these.
exec
#include <unistd.h> extern char **environ; int execl(const char *path, const char *arg0, ... /*, char *(0) */); int execle (const char *path, const char *arg0, ... /*, char *(0), char *const envp[] */); int execlp (const char *file, const char *arg0, ... /*, char *(0) */); int execv(const char *path, char *const argv[]); int execve (const char *path, char *const argv[], char *const envp[]); int execvp (const char *file, char *const argv[]);The execl forms take a variable number of parameters with a NULL-terminated list of command line arguments.
The p forms use the PATH environment variable to search
for the executable.
The e forms allow you to set the environment of the new process
rather than inheriting it from the calling process.
Program 3.4 (execls.c) creates a child to run ls -l.
Program 3.5 (execcmd.c) creates a child process to execute a command given on the command line.
Program 3.6 (execcmdargv.c) creates a child process to execute a command given as a single string on the command line.
Many of the attributes of a program are inherited after an exec.
These include the processID, the userID (owner), current working directory,
and open file descriptors.
